Features:

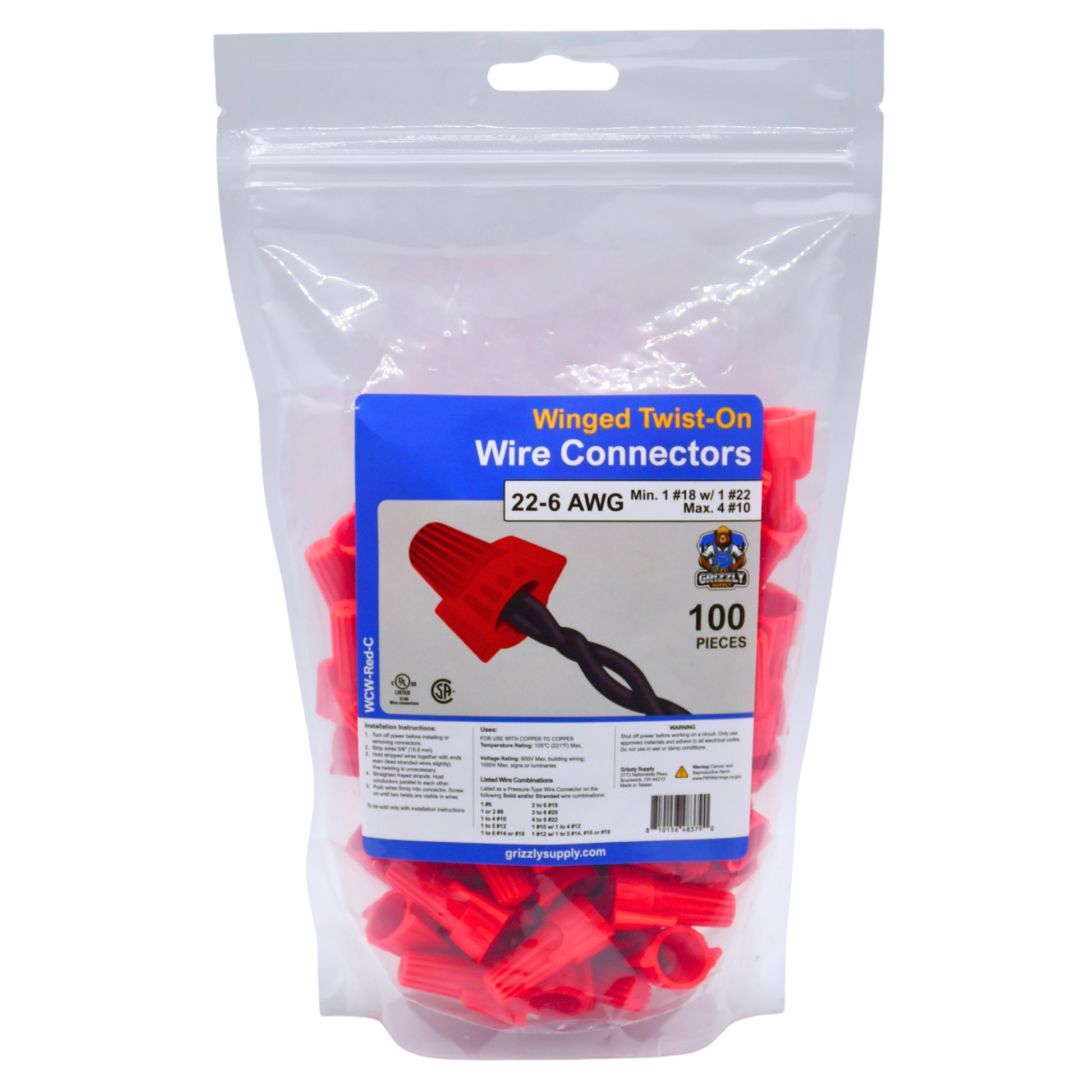

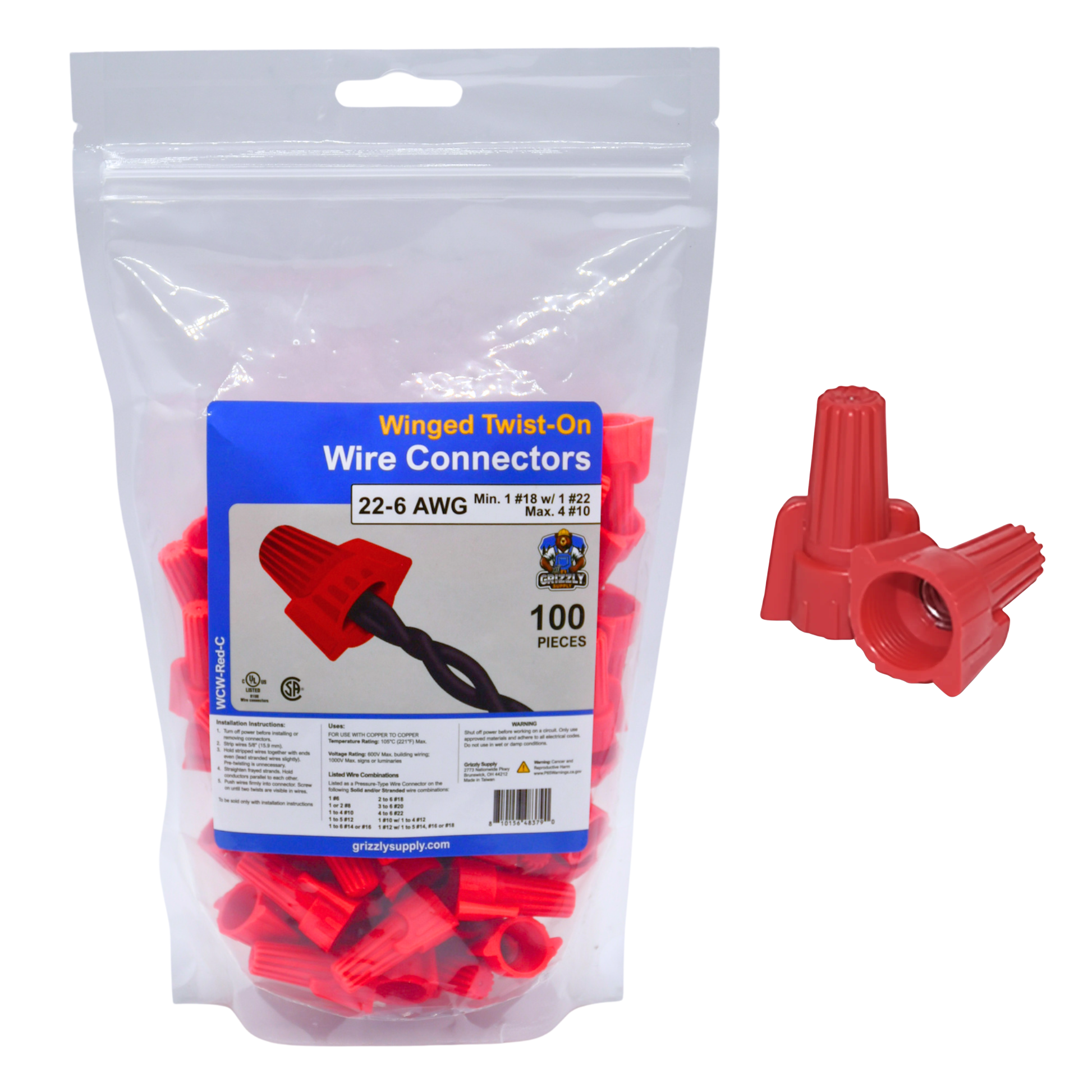

- UL-Listed Winged Red Twist-On Wire Connector rated for 6-22 AWG copper-to-copper connections
- Pack of 100 connectors in a stand-up retail pouch with peg hole for store display and job-site storage
- AWG Range: 6-22 | Min. Configuration: 1 #18 with 1 #22 | Max. Configuration: 4 #10
- Temperature Rating: 105°C (221°F) Max. | Voltage Rating: 600V Max. building wiring; 1000V Max. signs or luminaires
- The largest standard winged connector in the Grizzly line - handles single 6 AWG wire and up to 4 #10 conductors
- Extended wing tabs for fast, comfortable hand-tightening or nut driver installation on heavy-gauge terminations
- Covers demanding combinations including 1 to 6 #14, mixed 10/12 AWG, and up to 6 #22 wires
- Strip wires 5/8" (15.9mm) - no pre-twisting required; push conductors in flush and screw on securely
- Ideal for service entrance work, feeder taps, panel terminations, and any application requiring 6-10 AWG connectors
- Not for use in wet or damp conditions
- Made in Taiwan | Brand: Grizzly Supply
GTIN: 810156483790
